250W for Computer PC Power Supply FSP FSP250-60ATV (PF) 20-Pin PS2 ATX Power Supply

Overview

Power Supply suitable for Computer PC Power Supply FSP FSP250-60ATV (PF) 20-Pin PS2 ATX

The FSP 250W 250W Power Supply is designed to cater to the needs of mainstream builds while delivering high performance. With a focus on energy efficiency, it operates at up to 86% efficiency, allowing users to cut down on electricity costs.

Specifications

Compatible With:

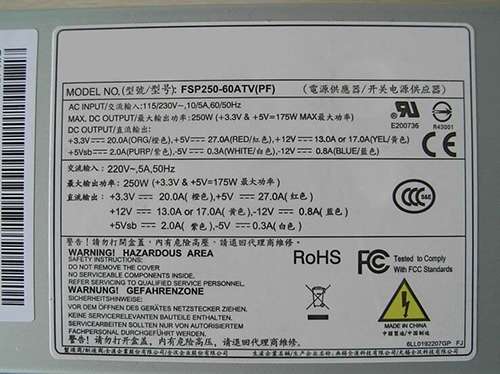

MAX DC OUTPUT: 250w(+3.3v & +5V=175W MAX
DC OUTPUT : +3.3V--20.0A(ORG),+5V--27.0A(RED),+12V--13.0A or 17.0A(YEL)
+5Vsb--2.0A(PURP),-5A--0.3A(WHITE),-12V--0.8A(BLUE)

Suitable For:

Model : FSP250-60ATV(PF)
SPEC
Type : ATX
Maximum Power : 250W
Fans : 1
Dimension : 5.5" x 5.9" x 3.4"
Dual +12V : No
Hold-up Time : 16ms min.@115V/60Hz; 10ms min.@230V/50Hz
Efficiency : > 65%
Input Voltage : 115/230 V
Input Frequency Range : 47 - 63Hz
Input Current : 7A @ 115V, 4A @ 230V
Output : +3.3V@20A, +5V@27A, +12V@17A, -5V@0.3A, -12V@0.8A, +5VSB@2A
MTBF >100,000 Hours
Approvals UL 1950, CSA C22.2 Level 3, TUV EN60950, NEMKO (CB Report)

Available Connectors:
1x 20-Pin ATX Motherboard Connector (cable length ~13")
1x 6-Pin Auxiliary Connector (Optional)(cable length ~13")
1x 4-Pin 12V Connector(cable length ~13")
5x HDD/CD/DVD Power Connectors (cable length 11"~17.5")
2x 4-Pin Floppy Drive Connector(cable length ~24")
